Dock Leveler Seal Brushes

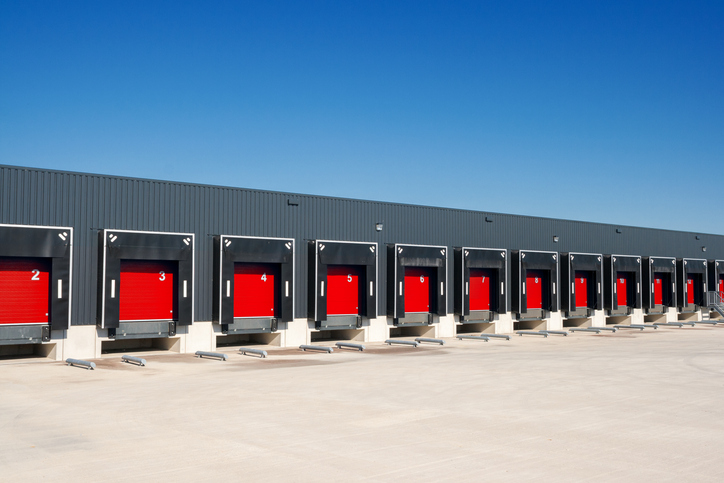

When shipments come or go by truck from a warehouse, the truck backs up to the dock for loading or unloading. The height of the dock does not always match the height of the truck bed. In such cases, an adjustable dock plate is used to connect the two.

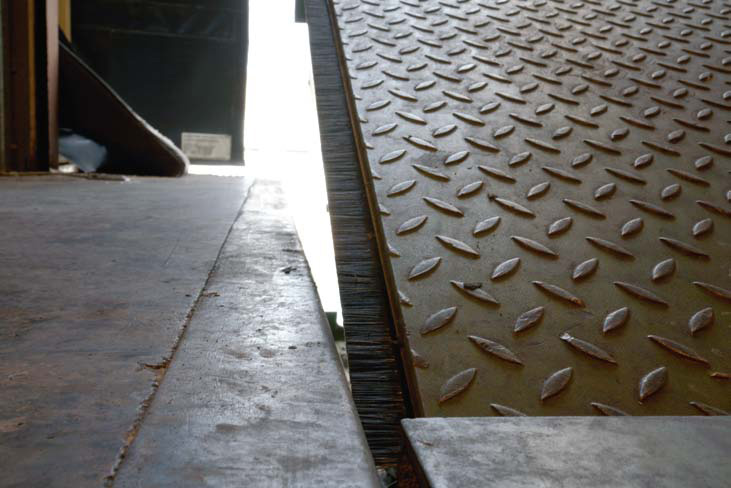

The dock plate is typically built into the floor of the facility and there are gaps on the sides and ends. Dock leveler seal brushes close up any gaps around the plate mechanism. This helps to:
• Eliminate light and odors from escaping the facility
• Keep pests out (birds, rodents, insects)
• Seal out elements such as wind, rain, and snow
• Seal out dust and debris
• Sunlight barrier for door and dock seals

If you'd like to speak with one of our custom brush experts about your dock leveler seal brush needs or ideas, please call our office. We've got just the brush for you or we will work with you to design your brush solution from concept to creation.

Contact Us Now !

Our Stock Loading Dock / Dock Leveling Seal Brushes

Printer Friendly PDF

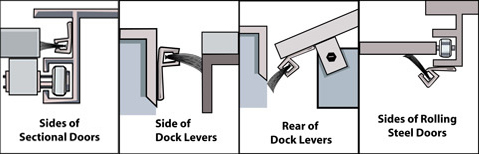

Our Custom Loading Dock / Dock Leveling Seal Brushes

Dock levelers need a 1 to 1” to 1-1/4” gap between the concrete and the leveler in order to work correctly. A standard Dock Leveler 6’ x 6’ with a 1-1/8” gap is equivalent to a hole measuring 243” square inches.

Left unsealed a dock leveler will cause large quantities of air infiltration and exfiltration within your building, creating an unnecessary increase in utility expenses and reducing the comfort of your working environments. The gaps also allow in dust, dirt and pests that are attracted by the heat and light of your building’s interior.

Air leakage problems are also compounded by what is commonly known as the “chimney” or “stack” effect. Hot air rises and escapes through openings near the top of the building, while cold air is drawn in through dock levelers openings door gaps and near the bottom of the building. Depending on temperatures, air movement caused by the chimney effect can move up to 10 mph.

The solution is a custom strip brush specifically designed to be used as a dock seal. Precision Brush dock seals can stop 99% of air infiltration and can be up to 3 times as effective as vinyl seals.
