Stock Wheel Brushes from Futch Brush Factory

插入视频播放图标

Copper Center Wheel brushes are manufactured using a copper tube, brush filament and a steel ring or washer. The filament is placed evenly around the outside of a copper tube. The washer is placed over the filament and, using a punch press, the tube is then formed into a “U” shape around the washer. This secures the filament, which is then trimmed to the proper outside diameter.

Brass is recommended in non-sparking environments. Urethane Encapsulated are also available for wire.

Safety Requirements: Operators must, at all times, observe common safety practices, such as wearing goggles, keeping machine guards in place, observing all speed restrictions, wearing appropriate protective clothing and comply with ANS-B165.1 - 1979 "Safety Requirements For The Design, Care And Use Of Power Driven Brushing Tools."

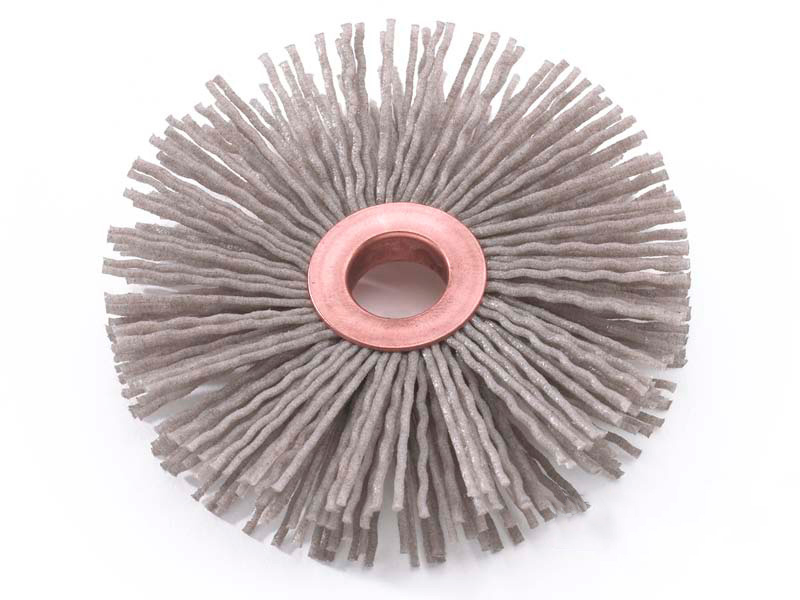

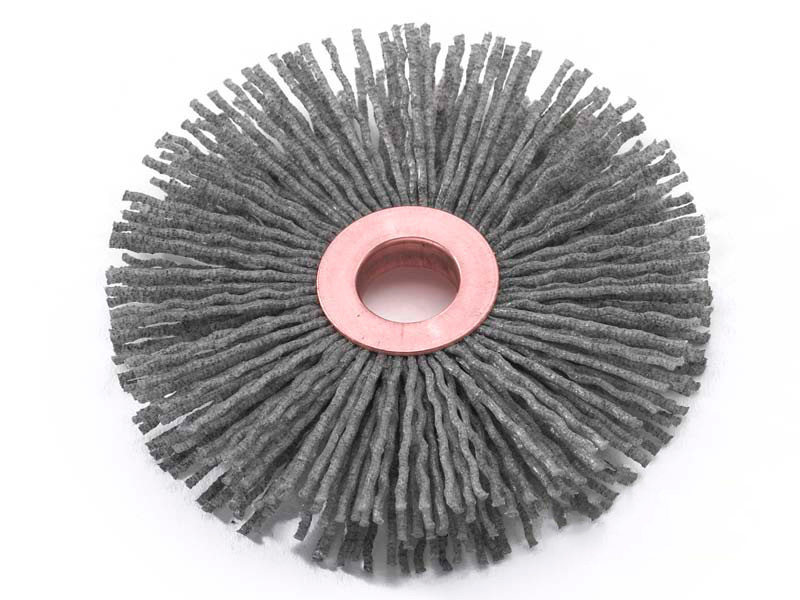

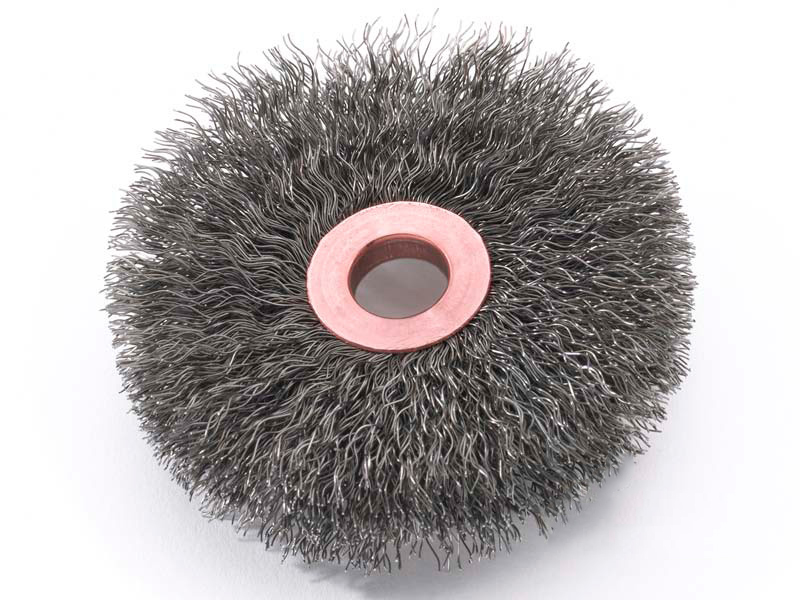

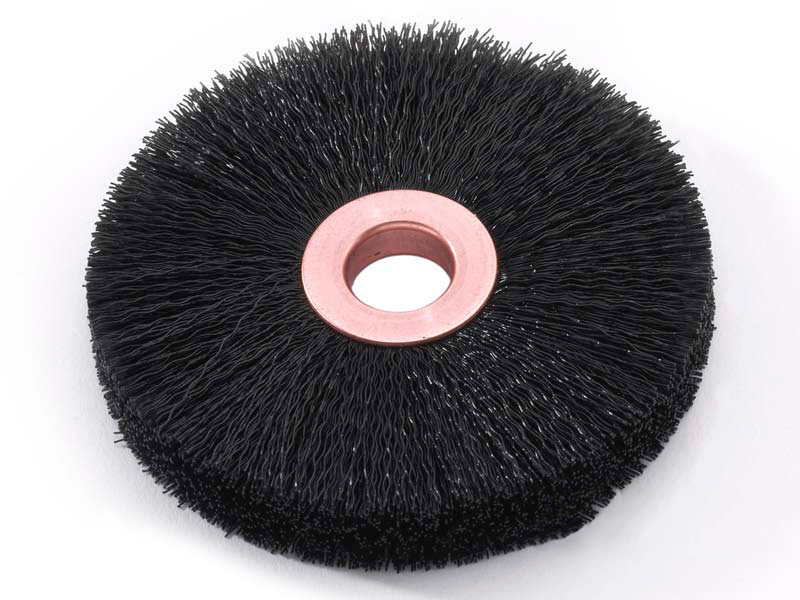

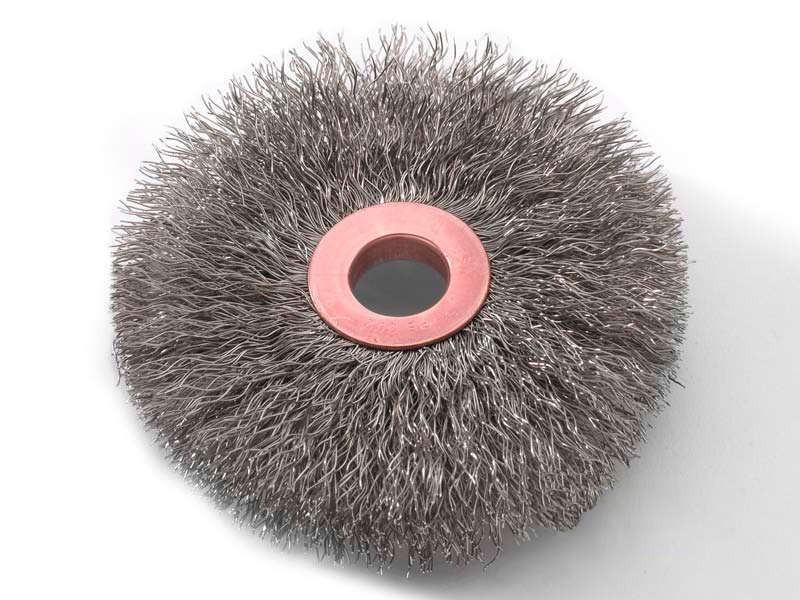

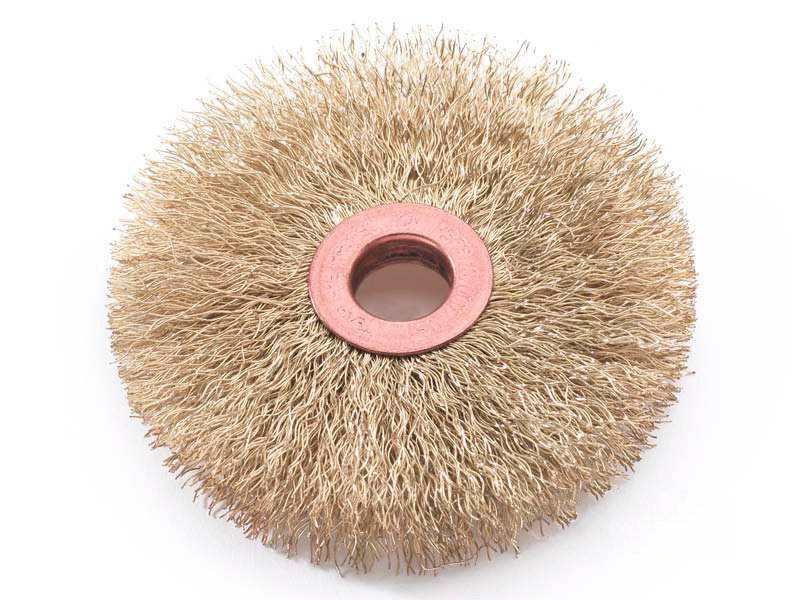

Copper Center Wheel brushes are available with Carbon Steel, Stainless Steel, Brass (for non- sparking applications) Nylon, Abrasive Nylon Horse Hair and Tampico filaments.

Ideal for the following applications:
• thread cleaning
• edge blending and finishing
• cleaning and polishing
• removing rust, scale and carbon
• cleaning boiler tubes
• aerospace and nuclear applications
• cleaning molds, dies and extruder barrels

Copper Center Wheels can be used individually or mounted side-by-side for a wider brush face. For wire stripping devices, two brushes can be mounted and programmed to rotate in opposite directions within close proximity. No matter what the application, high-speed operation is necessary for most effective use.
